The REVO Smart Cupping Massager
Congratulations on your new REVO. Everything you need for a safe, effective first session is on this page — start with the six steps below, then keep the manual handy.
Please don’t hesitate to contact our friendly and fast support staff for any problems or questions. Most issues are resolved same day.
Watch the Quick Start video, then follow the steps.
- Level 1Suction
- Level 1Heat
- 2–3 minper area
- 5 mintotal, first sessions
Your first session in 6 steps
Go slowly the first few times. Your skin needs a couple of sessions to adjust to suction and heat.
-
Prep the skin and the cup
Clean and moisturize the area, then apply a massage or essential oil so the cup glides. Check that the transparent tube is aligned and tightened — REVO won’t work properly if it’s misaligned.
-
Power on
Press and hold the Power button for 1 second. The screen shows a 20-minute countdown and REVO starts on level 2 suction and level 2 heat. It switches off by itself after 20 minutes.
-
Set the suction
Tap the Suction button to step up through 12 levels (after 12 it loops back to 1). The screen shows the level briefly, then returns to the timer.
Beginners: drop to level 1 for your first few sessions. -
Set the heat and red light
Tap the Temperature button to step through 12 heat levels. After 12 the next tap sets it to 0, which turns off both heat and red light therapy. From level 9 the indicator flashes to warn you it’s getting hot.
Not sure? Keep heat at level 1. -
Choose a mode and start
Mode 1 — Dynamic Breathing (single dash on screen): place the cup on one spot and let it pulse. Tap Power once to switch to Mode 2 — Glide (double dash): swap on the gliding tube, then sweep slowly across the muscle. Stay 2–3 minutes per area.
-
Release, then switch off
Hold the device and press Suction Release so it lets go of the skin without pulling. Then press and hold Power to turn it off. Wipe the tube with a dry cloth, and wait 48 hours before cupping the same area again.
Four buttons, one screen
Everything is on the top panel. The USB-C charging port is on the back (5V / 2A).
Power / Mode
Hold 1 s to turn on or off. Tap once to switch between Dynamic Breathing (Mode 1) and Glide (Mode 2).
Suction intensity
12 levels. Each tap goes up one; after 12 it returns to 1. Starts on level 2.
Temperature + red light
12 heat levels, with red light therapy on whenever heat is on. After 12 the next tap sets 0 (heat and light off). Flashes from level 9.
Suction release
Instantly lets go of the skin. Keep a hand on the device so it doesn’t drop. Press it before switching off.
Using Mode 2? Swap to the gliding tube first. Check the cotton filter under the tube monthly and replace it when it’s dirty.
Change the cup, change the therapy

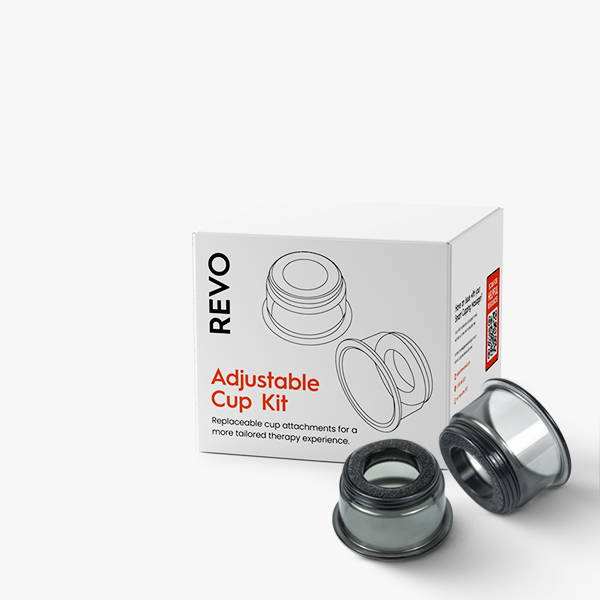

The Attachment Kit adds a small and a large tube to your REVO, so you can switch between pinpoint work and broad coverage in seconds.
- Small tube — targets trigger points and acupressure points with localized suction to release tension and improve circulation.
- Large tube — covers big muscle groups like legs, chest and back in fewer passes, saving time each session.
- Easy swap — unscrew the tube, screw on the next one, and align it before you start. Compatible with every REVO Cupper.
Important notice
Your comfort and safety come first. Please read this before your first session.
Please note
- Heat and suction sensitivity. Some users are sensitive to the heat and suction. Pay attention to how your skin reacts during the first few sessions.
- New to cupping? Start on low heat and low suction. Limit use to 2–3 minutes per area and no more than 5 minutes total until your skin adjusts.
- Marks are normal. Redness or circular marks after a session are a normal response and usually fade within 3–5 days. Wait 48 hours before treating the same area.
- Stop if it hurts. Stop immediately if you feel strong discomfort or see a blister forming. Rest 45 minutes before bathing.
Do not cup on
- Broken, burned, infected, irritated or sunburned skin
- Moles, scars, stitches or recent surgical sites
- Varicose veins, lymph nodes or large blood vessels
- The face, near the heart, or private areas
- The belly or ankles during pregnancy, or during menstruation
- Children under 12 (without doctor approval)
Check with your doctor first if you
- Take blood thinners or have a bleeding disorder
- Have a pacemaker or other implanted device
- Have uncontrolled heart, blood-pressure, respiratory or infectious conditions
- Are being treated for cancer or diabetes
- Have very thin or fragile skin
Use at your own risk. REVO is not responsible for skin injuries caused by misuse or overuse. Anyone considering cupping should consult a medical professional, especially if you have a pre-existing condition. See the Safe Use Guide for the full list of contraindications.
Quick fixes
REVO won’t turn on
- Press and hold the Power button for at least 1.5 seconds.
- Charge REVO for a few hours with the USB-C cable, then try again.
Suction or heat feels weak
- Remove the transparent tube and reinstall it, making sure it’s perfectly aligned and tightened.
- Check the air inlet and exhaust holes for blockage.
- Check whether the cotton filter needs replacing.
It won’t charge
- Unplug the cable and plug it back in, making sure it’s fully seated.
- Try a different wall adapter or socket.
- Check the charging port and cable head for dirt and clean gently if needed.
I have round marks after a session — is that normal?
How do I clean it?
Something else isn’t right
Glide better, recover faster
The Therapy Enhancer Kit pairs a pre-therapy oil with a post-therapy cream — the two products the manual recommends around every REVO session.
- Therapy Massage Oil — apply before you start so the cup glides smoothly, especially in Glide mode.
- Soothing Cream — for joints, muscles and bruises after your session, to calm the skin and speed up recovery.
- Healthier-looking skin — promotes healthier skin and helps reduce the appearance of cellulite with regular use.
